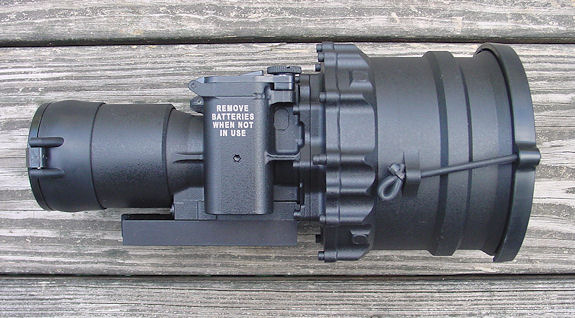

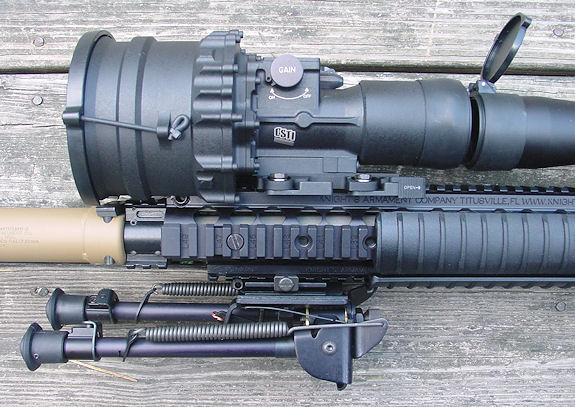

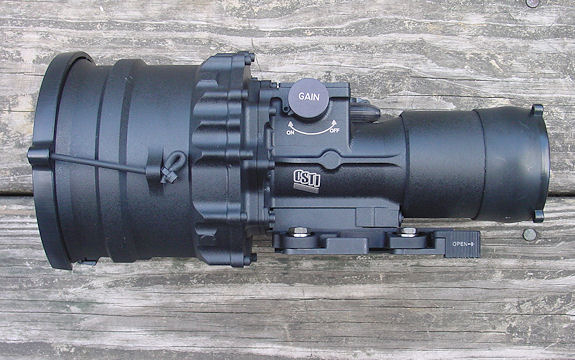

AN/PVS-27 Magnum Universal Night Sight™ (MUNS™) is a
high-resolution clip-on night vision weapon sight that mounts on any MIL-STD-1913 rail
interface forward of an existing scope, adding night vision capabilities to daytime
target acquisition platforms. The Magnum Universal Night Sight™ (MUNS™) utilizes a
full MIL-SPEC Gen 3 (autogated pinnacle) OMNI-7 image intensifier tube, an extremely

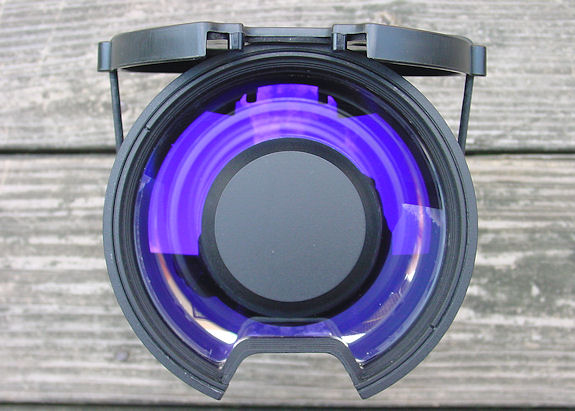

fast f/1.0 catadioptric lens for a brighter and sharper image in starlight, and patented
permanent boresight alignment technology. The MUNS™ gathers twice as much light as the
AN/PVS-22 Universal Night Sight™ (UNS™) and can be used against targets at 1.5 times the
range of the AN/PVS-22. The unit is installed, operated, and removed without tools and
without affecting boresight (permanent boresight alignment). The unit can be mounted on
a spotting scope for long range reconnaissance, hand-held as a Night Observation Device
(NOD), or used in other night-time operations requiring night vision capabilities.

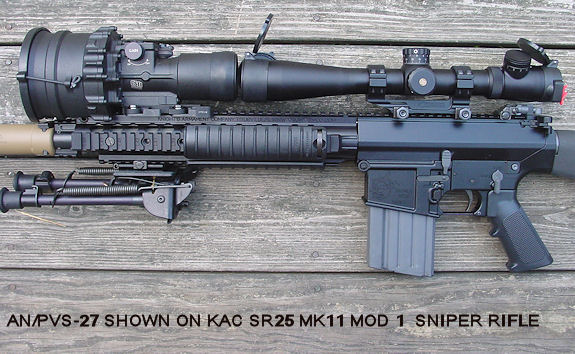

Optimized for medium- & long-range sniper weapons including the M110, SR-25/MK11, XM107,
.338 Lapua, .308 M24, Chandler & .300 Win Mag. Effective on all weapons from carbines to
.50 caliber semi-automatic and bolt action sniper rifles.
Detect a Vehicle: In Starlight up to 3150 meters In 1/4 Moonlight up to 4070 meters Detect a Man: In Starlight up to 1350 meters In 1/4 Moonlight up to 1730 meters. System Specifications Boresight Characteristics Accuracy: Factory Aligned to ½ MOA or Better Adjustments: None Repeatability: Within ½ MOA System Characteristics Magnification: Unity Optimum Dayscope Magnification: 3X - 20X Field of View: 10° Focus Range: 15 meters to Infinity Image Intensifier Gain: 1,000 - 75,000 Performance Resolution (Minimum): 4.2 cy/mr Resolution (Typical): 5.0 cy/mr Facial ID Ranges Starlight, Low Contrast: 100 m Starlight, Optimum Contrast: 140 m ¼ Moonlight, Low Contrast: 140 m ¼ Moonlight, Optimum Contrast: 180 m Man Detection Ranges Starlight, Low Contrast: 970 m Starlight, Optimum Contrast: 1350 m ¼ Moonlight, Low Contrast: 1380 m ¼ Moonlight, Optimum Contrast: 1730 m Optical Characteristics Objective Lens Focal Length: 92 mm Objective Lens f/Number: f/1.0 Output Optic Exit Pupil Diameter: 40 mm Physical Characteristics Shock Mitigation System™ SMS™ Controls: On/Off/Gain, Focus Batteries: 2 AA Operating Temperature: - -30° to +60° C Submersion: 33 ft. Length: 8.7 in. Max Height Above Rail: 3.75 in. Weight (w/o batteries): 50 oz. Interface to MIL-STD-1913: LaRue Adjustable Double Locking Lever Mount |
