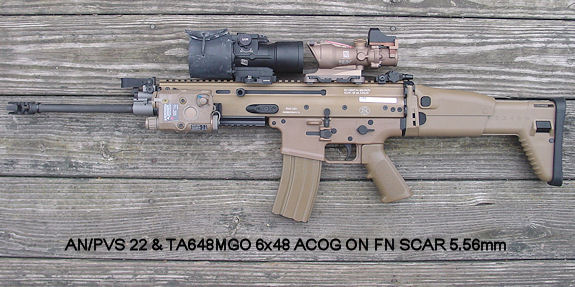

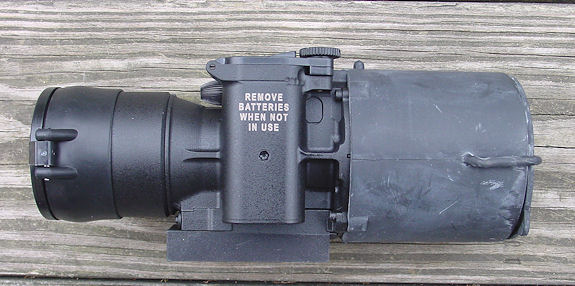

AN/PVS-22 Universal Night Sight™ (UNS™) is a high-resolution Clip-on Night Vision Device (CNVD) that mounts on any MIL-STD-1913 rail interface forward of an existing scope, adding night vision capabilities to daytime target acquisition platforms. The Universal Night Sight™ (UNS™) utilizes a full MIL-SPEC Gen 3 (autogated pinnacle) image intensifier tube, a fast f/1.15 catadioptric lens for a brighter and sharper image in starlight, and patented permanent boresight alignment technology. The unit is installed, operated, and removed without tools and without affecting boresight (permanent boresight alignment). The unit can be mounted on a spotting scope for long range reconnaissance, hand-held as a Night Observation Device (NOD), or used in other night-time operations requiring night vision capabilities. Optimized for medium-range sniper weapons, assault rifles and machine guns Including the MK11, M16, SCAR-H, M240 & 300 Win Mag. Effective on all weapons from carbines to .50 caliber semi-automatic sniper rifles.

System Specifications:
Boresight Characteristics
Accuracy: Factory Aligned to ½ MOA or Better
Retention: Permanent to w/in 1 MOA or Better
Adjustments: None
Repeatability: w/in 1/2 MOA
System Characteristics
Magnification: Unity
Optimum Dayscope Magnification: 1X - 12X
Field of View: 13°
Focus Range: 10 m - Infinity
I2 Gain: 1,000 - 75,000
Resolution
Minimum: 3.2 cy/mr
Typical: 3.5 cy/mr
Facial ID Ranges
Starlight, Low Contrast: 75 m
Starlight, Optimum Contrast: 110 m
¼ Moonlight, Low Contrast: 110 m
¼ Moonlight, Optimum Contrast: 135 m
Man Detection Ranges
Starlight, Low Contrast: 740 m
Starlight, Optimum Contrast: 1050 m
¼ Moonlight, Low Contrast: 1060 m
¼ Moonlight, Optimum Contrast: 1340 m
Optical Characteristics

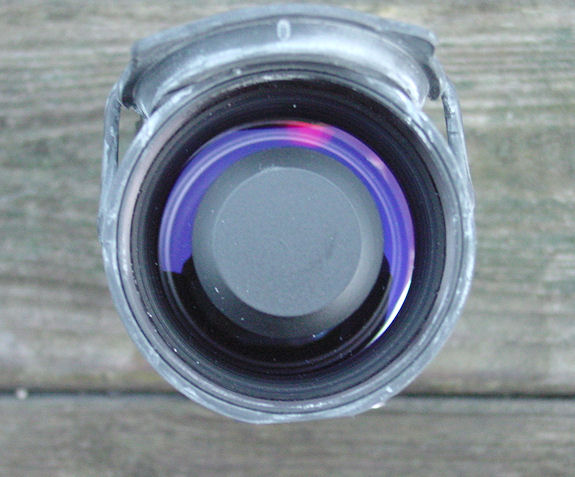

Objective Lens Focal Length: 68 mm
Objective Lens f/Number: f/1.15
Output Optic Exit Pupil Diameter 40 mm
Physical Characteristics

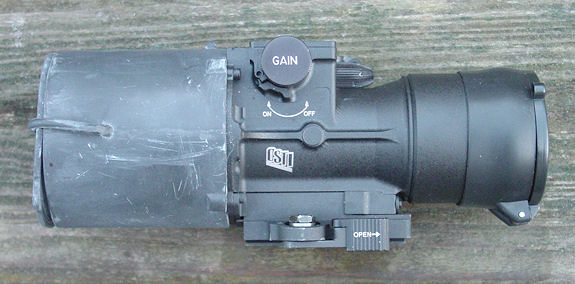

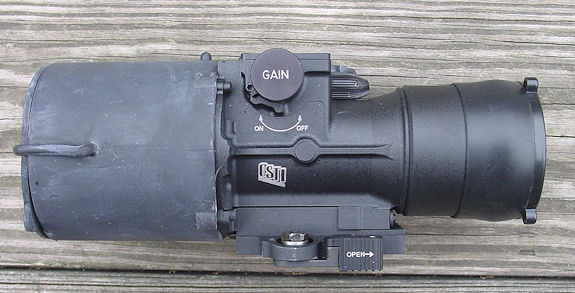

Controls: On/Off/Gain, Focus
Batteries: 2 AA
Interface (to MIL-STD-1913): Single Locking Lever
Operating Temperature: -30° to +60° C
Submersion: 66 ft. for 2 hours
Length" 7.1 in
Max Height Above Rail: 2.95 in
Weight (w/o batteries): 32 oz
