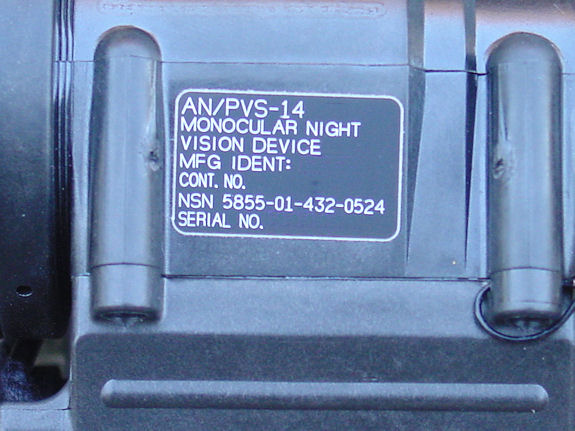

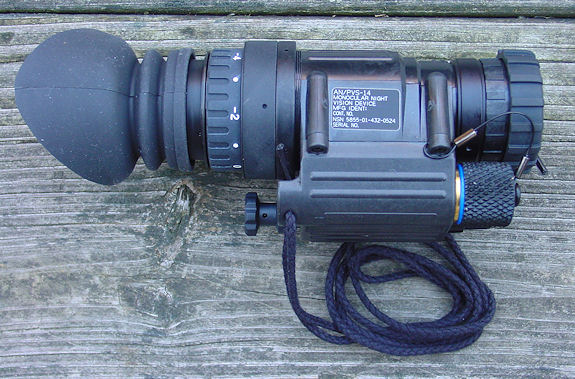

AN/PVS-14 - designed for use in a variety of ground-based night operations, ranging from the extreme tactical to basic surveillance. It features the superior performance of the Gen 3 PinnacleŽ image intensifier with manual gain control to optimize resolution in variable lighting conditions for better situational awareness.

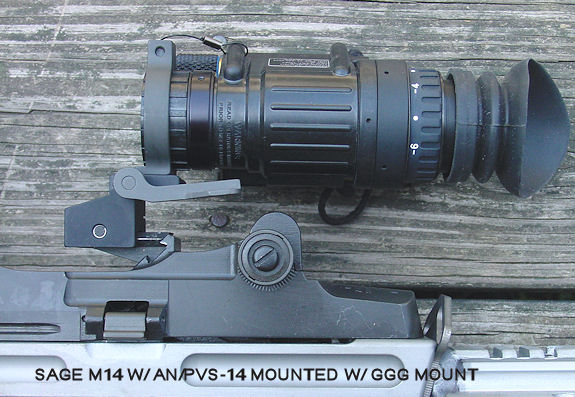

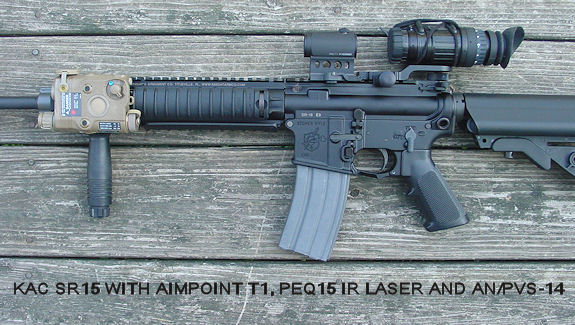

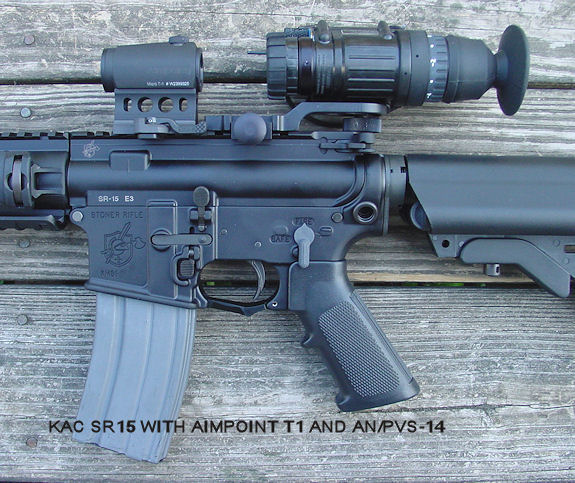

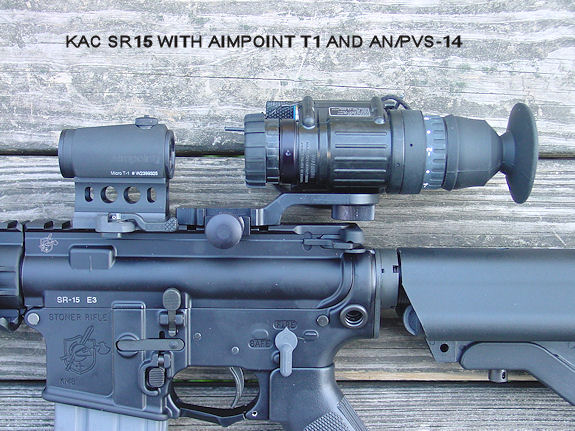

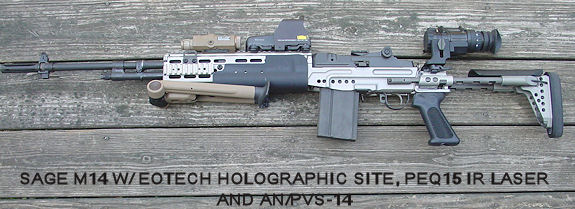

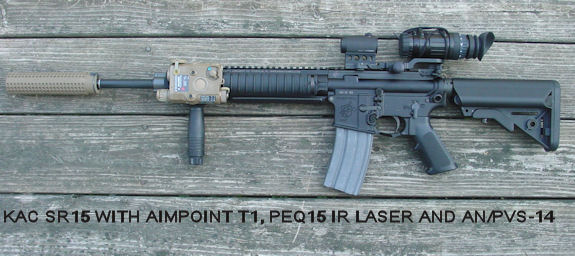

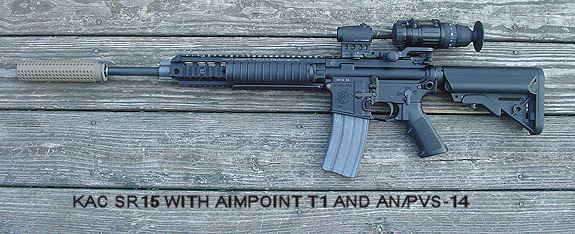

The AN/PVS-14 offers the user the most versatility of any night vision device available. The unit can be handheld for simple observation or head- or helmet-mounted for handsfree operations. The system can be weapon-mounted directly to any MIL-STD-1913 type rail system in conjunction with various optical or laser sighting systems. It can also be attached to various cameras for night time surveillance ops or gathering evidentiary data.

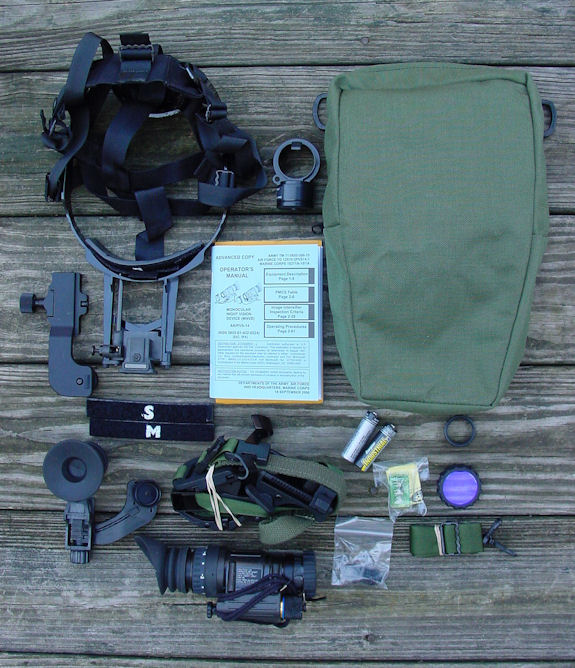

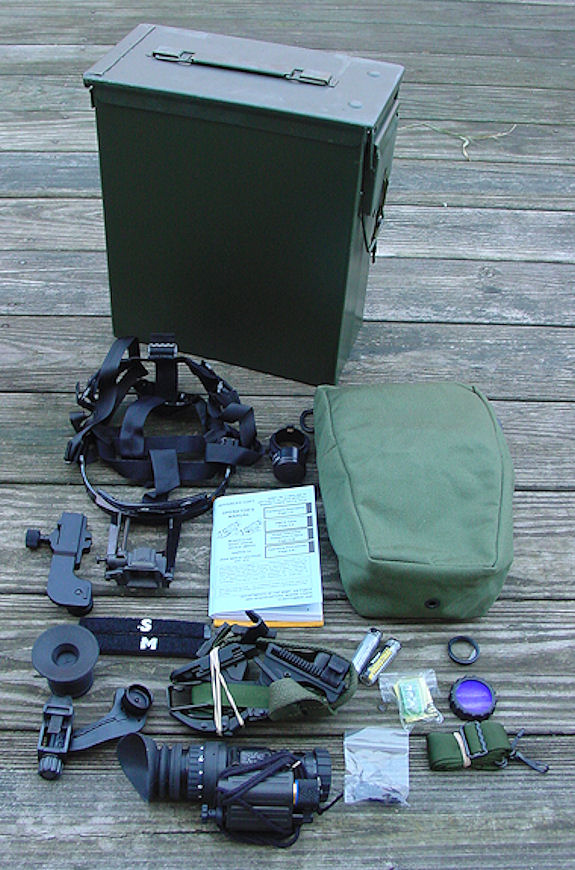

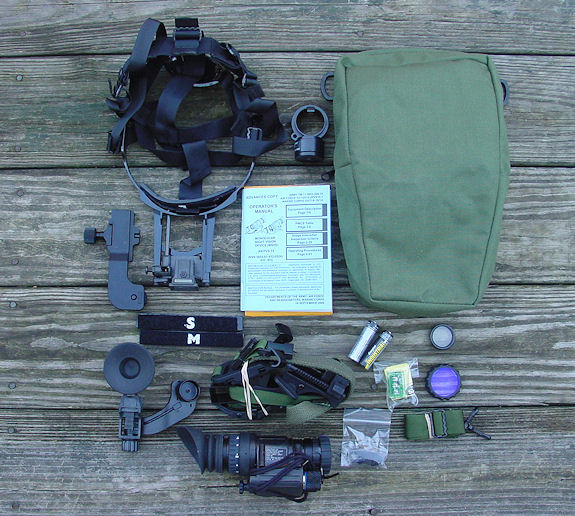

KIT INCLUDES:

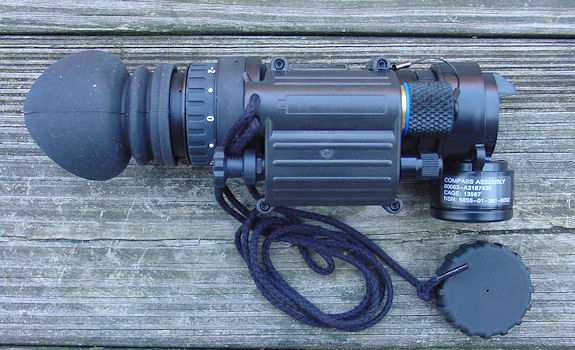

AN/PVS14 Night Vision Monocular, Headset, PASGT Helmet Mount, Swing Arm Adapter, Demist Shield (REAR LENS), Sacrificial FRONT lens Filter, Heads up type display Compass, Cantilever weapons mount, Combat Eye Guard (star enclosure), EYE CUP, Phoenix JR IR Beacon (CID), AA Batteries, Neck cord, Manual, LENS CLEANING PAPER, Carry Case, Shipping/ Storage Hard Case

SPECIFICATIONS:
Generation: 3 U.S. PINNACLE,
Resolution: 64-72 lp/mm (Typ)
Film: Thin-Film
Gate: Auto-Gated
Brightness Gain: Adjustable from 25 to more than 3000 fL/fL
Magnification: 1x
Field of View: 40°
Objective Lens: f/1.2
Eyepiece Lens: EFL 26 mm
Diopter Adjustment: +4 to -6
Range of Focus: 25cm to infinity
Voltage Required: 2.7 - 3.0 Volts
Battery Type: One (1) AA battery
Battery Life: Approx. 50 hrs at room temp
Weight: 12.4 oz (351.53 grams)
Dimensions: 4.5" (L) x 2" (W) x 2.25" (H)
Operating Temperature: -51°C to +49° C
Storage Temperature: -51°C to +49° C
System Warranty: 5 year tube, 3 year system

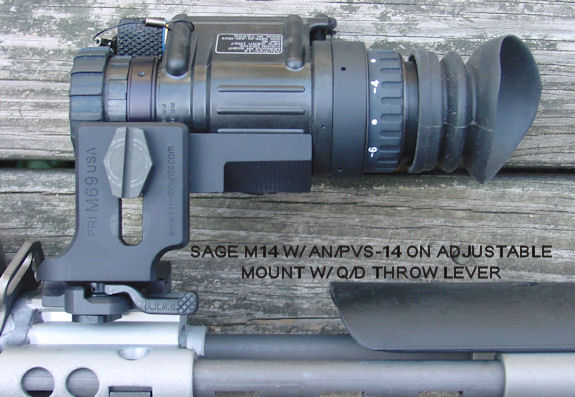

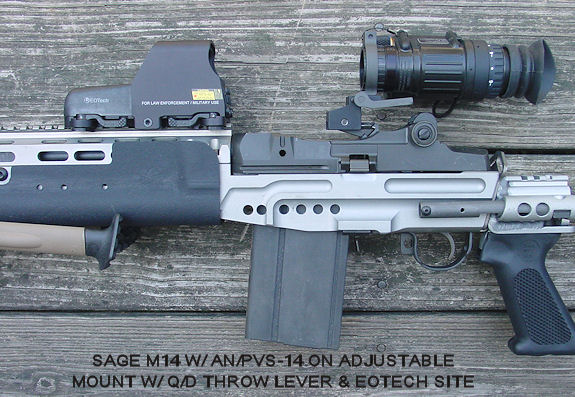

OPTIONAL PRI/ARMS PVS-14 ADJUSTABLE HEIGHT/THROW LEVER WEAPON MOUNT (ONE PIECE) $315
