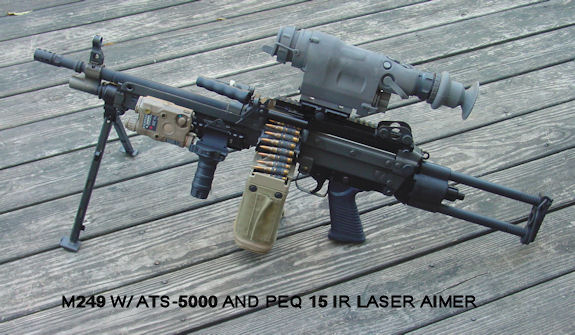

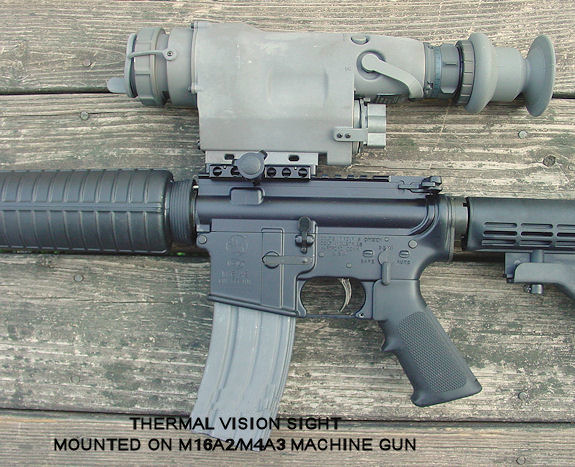

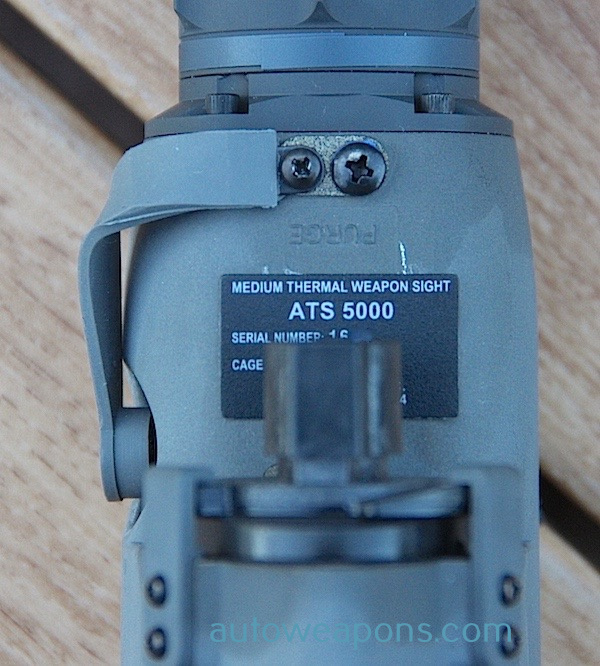

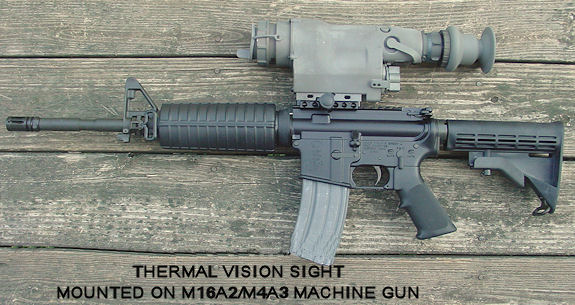

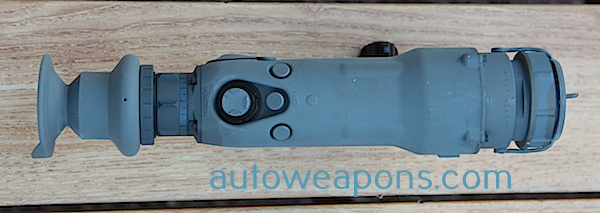

The ATS-5000 enables individual and crew served weapon gunners to see deep into the battlefield increasing their surveillance and target acquisition range. The ATS-5000 compliments current and future infantry armament providing the warfighter the ability to reach out and overmatch the enemy in all battlefield conditions and obscurants both day and night. The ATS-5000 is designed around a highly modular and common MicroIR®microbolometer sensor architecture that provides high sensitivity in a small, light weight package. This same modular MicroIR®technology has been well proven in firefighting, first responder, and Homeland Security applications. Additionally, the ATS-5000 is designed around common and modular assemblies that reduce logistics and depot level requirements.
The ATS-5000 provides the war fighter with high performance in small package size which is less than 2.8 lbs. offering dual field of view (FOV) via E-Z00M capabilities. The sights features electronically programmable reticles and have alpha/numeric system information overlayed on the eyepiece display and analog video output. For military & LE only.

Technical Specifications
Vehicle Recognition Range: 1100 meters(NFOV)
FOV WFOV: 20.6 degrees
FOV NFOV: 6.9 deg(3X e-zoom)
Magnification WFOV: 1.2X
Magnification NFOV: 3.6X

Physical Characteristics
Length: 13.3 inches
Width: 3.2 inches
Height: 5.4 inches
Weight w/batteries: 2.8 lbs.

Operational
MTBF: 1,000 hours
Operating Temp.: -46C to +49C
Storage Temp.: -46C to +71C
Time to operation: less than 30 seconds
Image Polarity: Black hot/White hot
Level/gain: Auto and Manual(Selectable)
Reticles: Selectable and Adjustable
Mission Operation Life: 10 hours(longer w/AA Lithium)
Power conservation: Stand by/sleep mode

Interfaces
Internal Power: 6 AA Batteries
Mounting Picatinny Rail: MIL-STD-1913

Features
Detector: Vanadium Oxide Microbolometer 8-14 micron spectral response
Detector Size: 640x480
Frame Rate: 30 Hz
Display size: 640x480
Output: Analog(RS-170); LVDS Digital (8 or 16 bit); LVDS
Individual eye correction: +2/-6 diopter adjustment
Communication Interference: RS 422 serial interface
External Power: 5-12 VDC
External Video: RS-170

Standard Equipment: Hard Plastic Storage/transportation case, Soft Carry Case, Lens Cover; eyecup, Operational Manual; lens cleaning kit Quick Reference card

Optional Accessories
Weapon mounting adapters
Remote video/power cable
