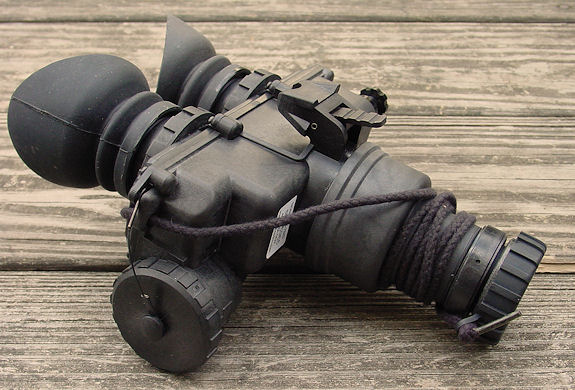

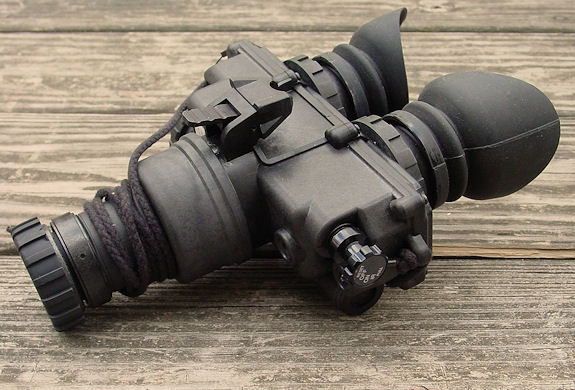

The AN/PVS7D is the top of the line military grade 3 NIGHT VISION GOGGLE. Used by the U.S. MILITARY for years, the AN/PVS7D is hard to beat for a great night vision goggle... will turn night into day for viewing night time troop operations, surveillance, and combat operations... NSN: 5855-01-228-0937 ...The PVS-7D is built around an 18 mm U.S. made Gen. 3 image intensifier. It has state-of-the-art Automatic Brightness Control (ABC), rapid-recovery Bright Source Protection (BSP), Low battery indicator and built-in IR illuminator for close-up illumination in complete darkness. Goggles have a quick release lever that permits one-hand mounting and dismounting from the head mount or helmet mount.

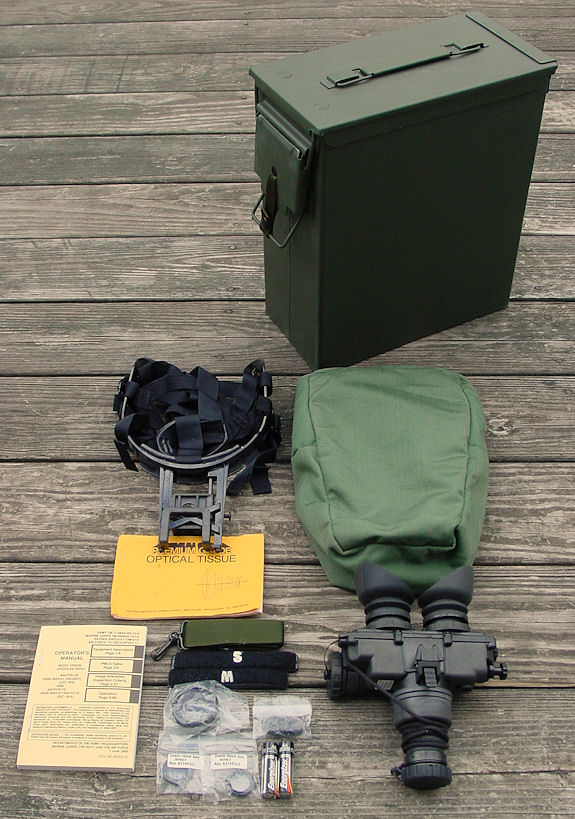

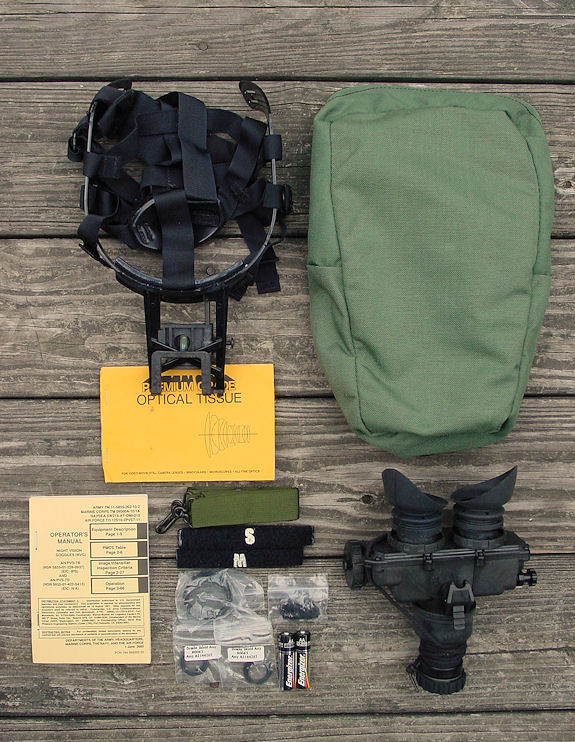

Standard PVS-7D System includes:
Head-mount assembly
Demist shield (2)
Sacrificial window
Soft eyecups (2)
Soft carrying case
Shoulder strap
Neck cord
Brow Pads
Front lens cap
Lens cleaning tissue
Manual
Two (2) "AA" Batteries.
MIL SPEC HARD PADDED HARD TRANSIT CASE

PVS-7D Specifications:
GENERATION: MILSPEC US-made Third Generation
POWER SUPPLY: Multistage, non gated
TUBE TYPE: 18mm
BATTERY TYPE: AA (2)
BATTERY LIFE: Up to 40 hrs.
RESOLUTION: 64-72 lp/mm
OPERATING TEMP: -60F to 135F
MAGNIFICATION: 1X
DIOPTER ADJ: -6 TO +2
OBJECTIVE LENS: 27mm F/1.2
FIELD OF VIEW: 40º and 13.5º w/3X lens
FOCUS DISTANCE: 20 cm to infinity
SYSTEM GAIN: 3,200x
L x W x L: 14.9x14.9x9.1cm
WEIGHT: 680gm

Applications:
Military, Law Enforcement
U.S.Customs and Border Patrol
Drug Interdiction
Covert Security and Surveillance
Night Search and Rescue
Night Forest Fire Hot-Spot Detection
Night Navigation

AN/PVS-7D Optional Accessories:
3X Mil Spec Afocal Lens
5X Mil Spec Afocal Lens
Mil Spec Helmet Mount
Magnetic Compass(HEADS UP DISPLAY)
IR Spot Flood Lens
IR Beacon
